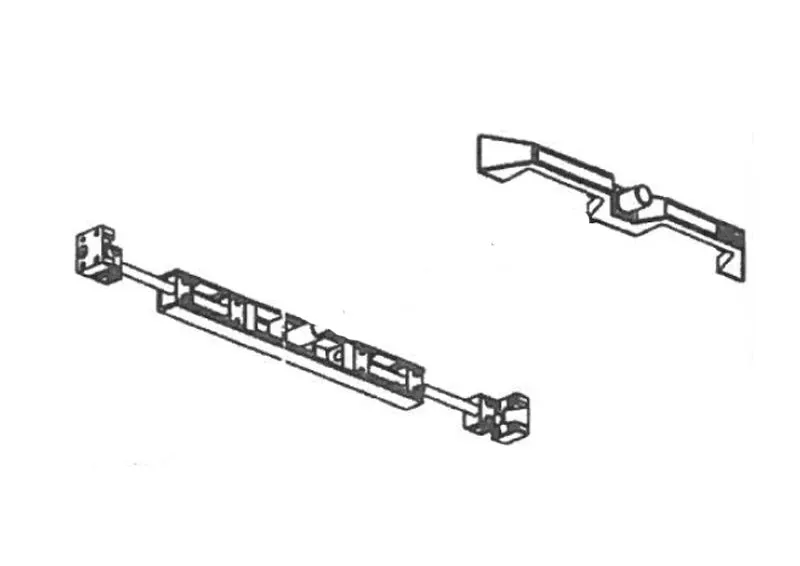

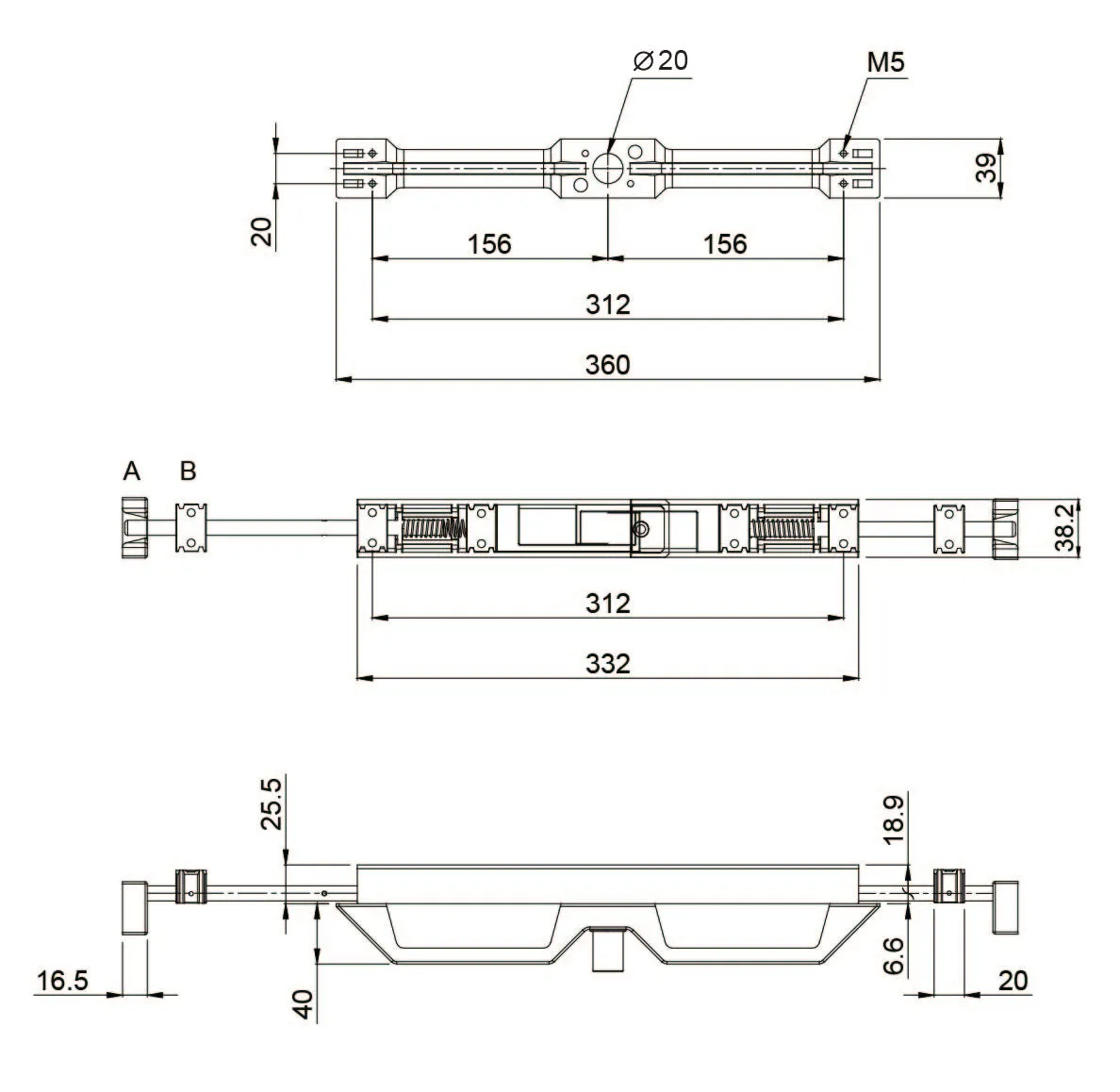

Our Rear Mounted Locking Handle is suitable for our 76mm and 56mm heavy-duty ball-bearing drawer slides range. This locking handle allows the user to lock a custom-built drawer in the closed and open position. It is suitable for drawers with a width of up to 1122mm.
Suitable for a wide range of applications such as: Pick up pull-out platforms, vehicle underfloor storage, large product stillage drawers and pull-out access for generators/batteries as well as bespoke engineering projects

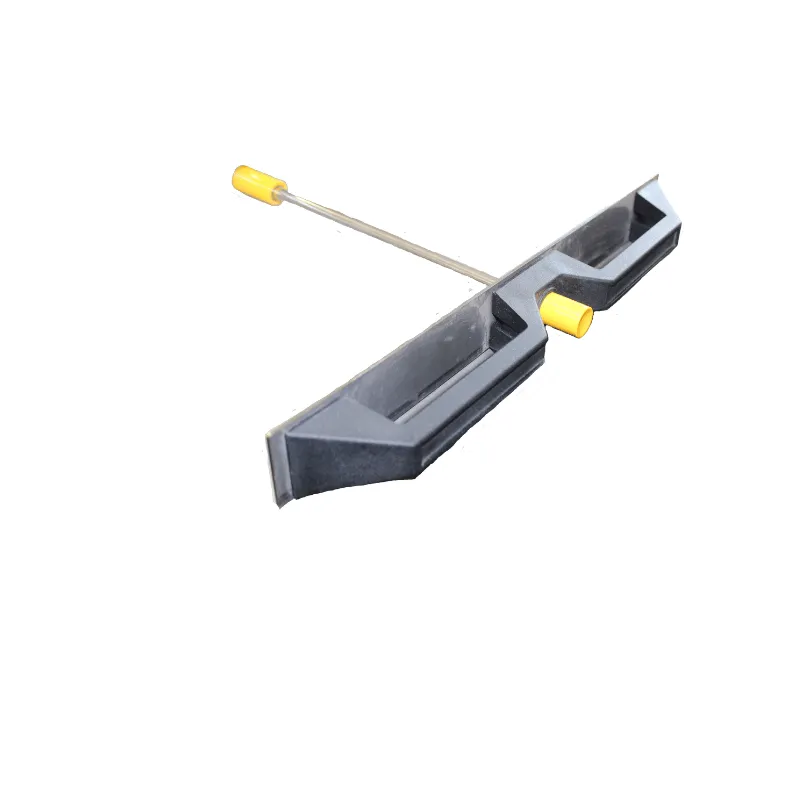

*Please note that you will require a threaded 10mm rod to extend the full depth of the drawer in the middle to link up the locking mechanism at the back and push-button handle at the front.
Features
- Function: Lock-in & Lock-out
- Drawer Width: Up to 1122mm
- Max Drawer Front Panel Thickness: 7mm
- Material: PBT Glass Fiber Handle; Stainless Steel Parts
- Cycle Approved: 30,000 cycles
- Lightweight and corrosion resistant for fuel efficiency and outdoor use.
Set Contains
- 1 x Locking Handle Kit (DS91500YL)
- 1 x Pack of M5 Screws and M5 Bolts for fixing (DS91500YL)
- 2 x 500mm Stainless Steel Rods for Drawer Width (DS91500YL)

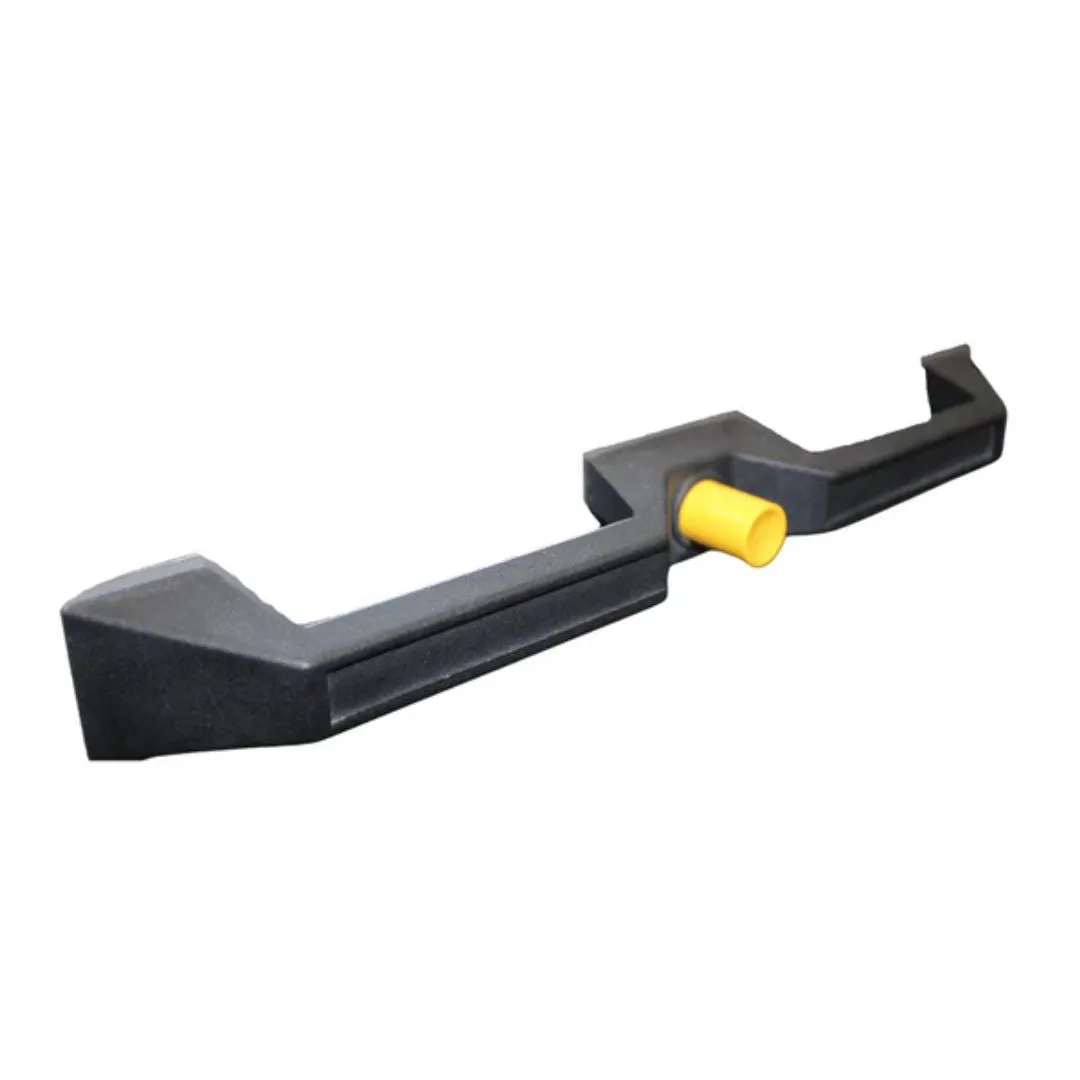

- 1 x Lock-In and Lock-Out Handle Button (DS91000YL)

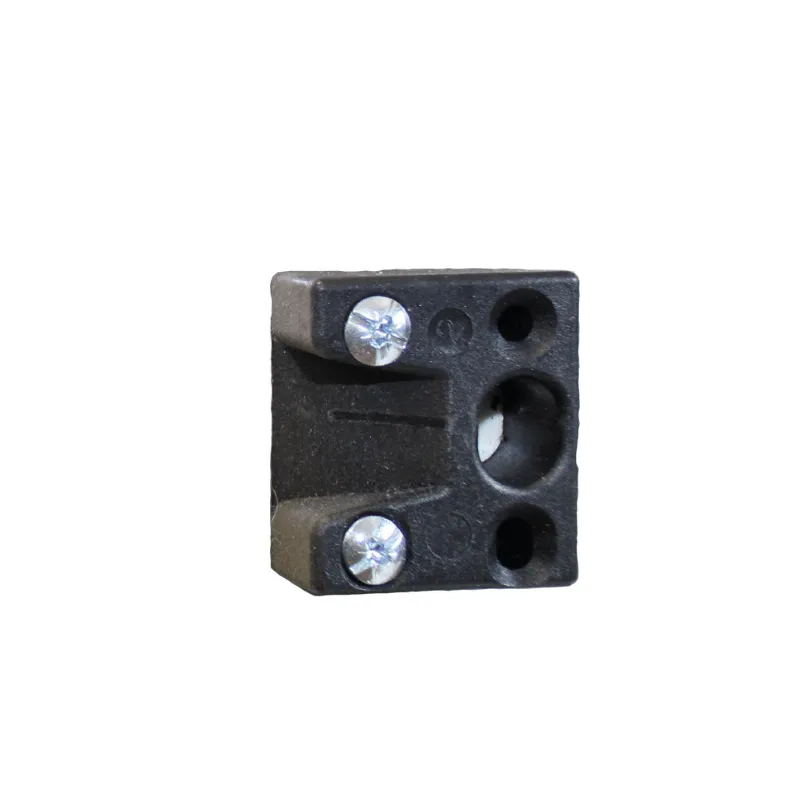

- 2 x Pairs of Locking Blocks (For Font and Back) (DS91002)
More Locking Points?
Additional locking points can be placed through purchasing our locking blocks separately .
Require Lock-In Only
If you require our lock-in (closed position) handle then please see
